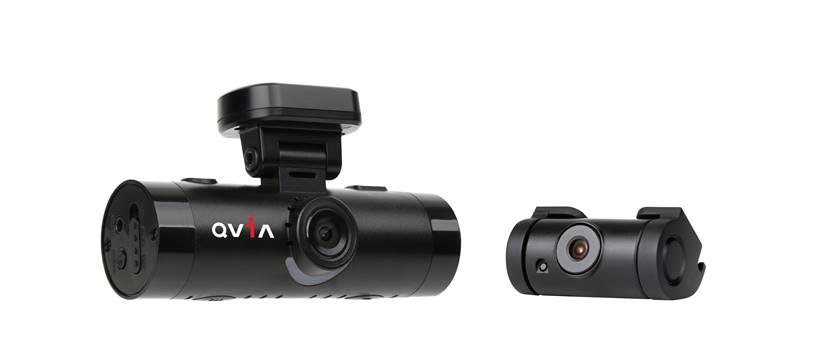

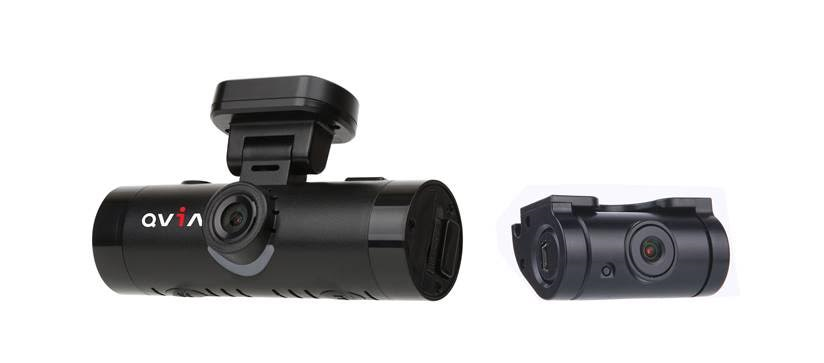

QVIA AR790 – 2CH DASH CAMERA Features
This latest dash camera offers the following features:

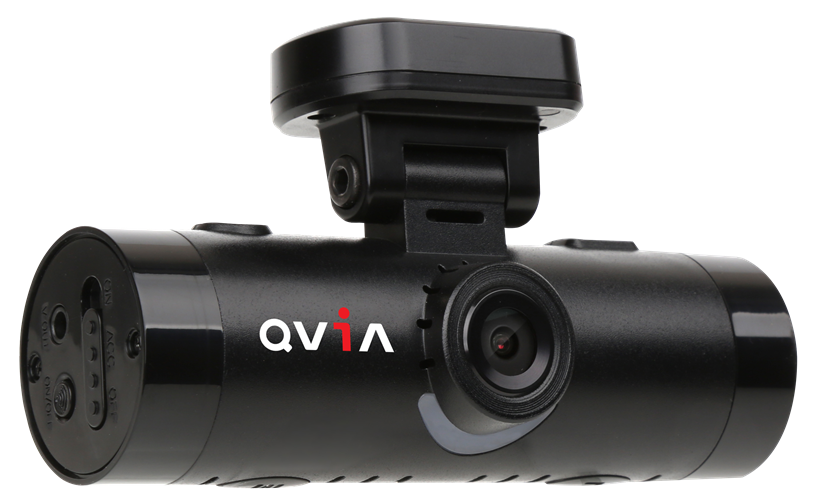

Front Camera – Full HD (1920 x 1080p) 30 fps 2.1 Megapixel Sony Sensor with 135 degree diagonal viewing angle (107 degree horizontal & 55 degree vertical)

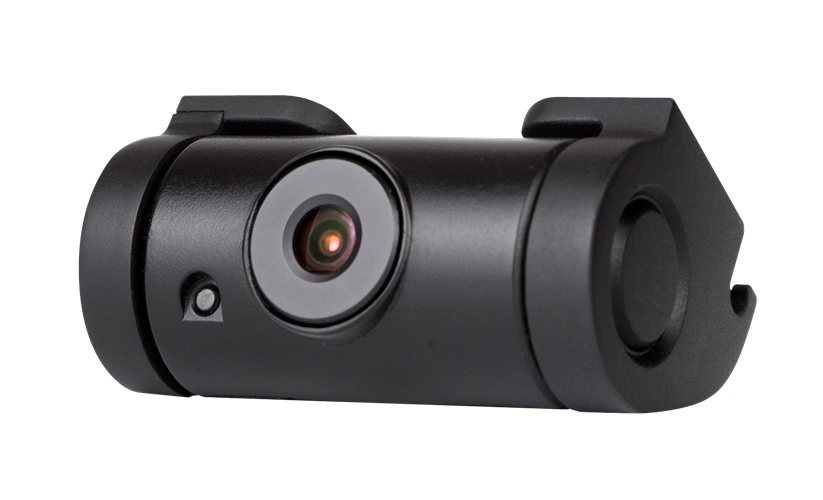

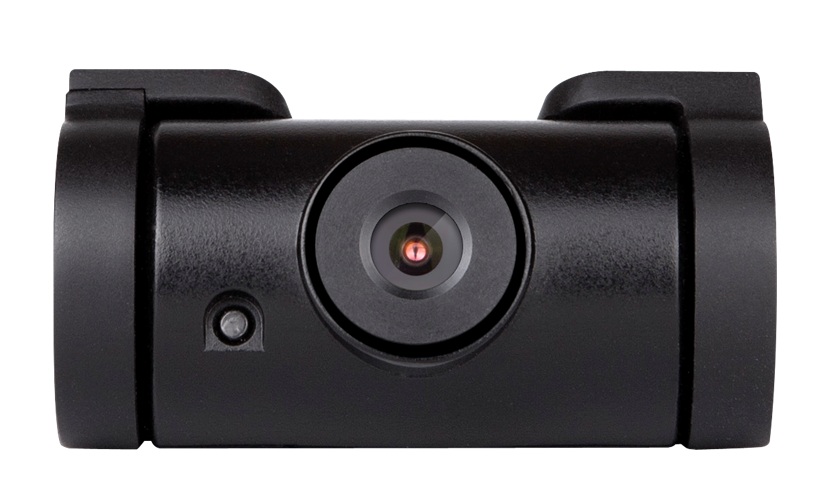

Rear Camera – Full HD (1920 x 1080p) 30 fps 2.1 Megapixel Sony Sensor with 130 degree diagonal viewing angle (107 degree horizontal & 54 degree vertical)
Video File Format – MP4 (MPEG)
G-Sensor – Built-in 3 Axis Impact Sensor (impact, sudden braking, sudden movement)
GPS – Dual-core GPS and Glonass location system for pin-point accuracy, reliability and speed
Storage Media – MicroSDHC/MicroSDXC – 16GB standard with support up to 256GB
Power – DC 12V-24V (Auto-sensing)
Power Consumption – 295mA (13.4V)
Battery Protection
Built-in Smart Power Battery Protection allowing the user to set the time and voltage for automated device shut-down
Operating Modes –
Off, Ignition Only, Always On and Parking Mode
Parking Mode – Front and rear motion sensing and recording
Operating Temperature: -30C to +70C
Dimensions & Weight
Front Camera: 109.9mm x 61.85mm x 38.3mm (82g)
Rear Camera: 50mm x 26mm x 31mm (25g)
Software –
iPhone, Android, MacOS and Windows
ADAS Support –
Advanced Driver Assistance System, including Lane Departure Warning System (LWDS), Front Collision Warning System (FCWS), Front Vehicle Start Alarm (FVSA), Auto Calibration. Requires supported vehicle with ADAS integration
Wi-Fi Connectivity
802.11b/g/n 2.4-2.4835GHz with Live Playback, Video Download and Configuration all accessed via the iPhone and Android apps
Format-free
Fully automated SD card formatting, negating the need to remove SD storage for manual formatting and configuration, with option of manual formatting on the camera
Night Vision
Intelligent Night Vision with Wide Dynamic Range (WDR) to improve image quality under high-contrast lighting conditions to clearly capture details
Recording Modes
Continuous, Event, Manual, Motion Detection and Time Lapse
Mount
3M Self-adhesive front and rear direct windscreen mounts
Additional Camera Support
Optional infrared internal-facing camera or fully waterproof infrared rear-facing camera
Built-in Super Capacitor
Battery-free, due to built-in semi-permanent super capacitor which will write all files onto the MicroSD card before the device switches off.
QVIA AR790 – 2CH DASH CAMERA – Whats in the Box
•AR790 – Front Camera
•AR790 – Rear Camera
•Micro – 16 Gig SD Card & Adapter
•Hardwire Kit
•User Manual
•Fixed Clear Mount
•Sticky Pads, Front/Rear
•Cable Clips
•Allen Key
•Cigar Lead Optional*
