Zenec ZE-NC4612 – Mercedes Benz

Description

Vehicles Compatibility Chart:

Model	Model Year		Model	Model Year
Mercedes Benz – Sprinter II (W906)	2006 On		Mercedes Benz – A_Class (W169)	2004 – 2012
Mercedes Benz – Vito/Viano (W639)	2006 On		Mercedes Benz – B_Class (W245)	2005 – 2011

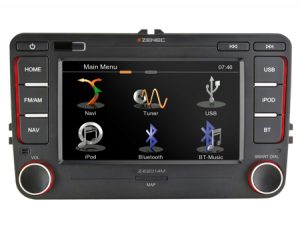

The ZE-NC4612 is a smart specialist, specifically developed for various MERCEDES vehicles. The specific construction, amber/whie button illumination and customized styling of the front panel makes ZENEC’s naviceiver blend in perfectly with the MERCEDES Sprinter II, Vito, Viano, A-Class, and B-Class. The ZE-NC4612 is also effortlessly integrated into the existing automotive electronics. The E>GO is linked to the steering wheel remote control and the Multifunction driver information display via the vehicle-specific CAN bus interface.

• Intuitive, user friendly HMI in 20 different languages
• 6.2″”/15.7 cm 16:9 HD TFT-LCD display with 800 x 480 pixels resolution and touchscreen control
• Phase diversity RDS dual tuner with 30 preset stations (18 FM/12 AM) – The vehicle must be fitted with a phase diversity antenna system, or else, must be retro fitted with such a system.
• Multi zone function
• 4 x 40 watts amplifier
• 24 bit D/A converter
• 2 x IR-remote control

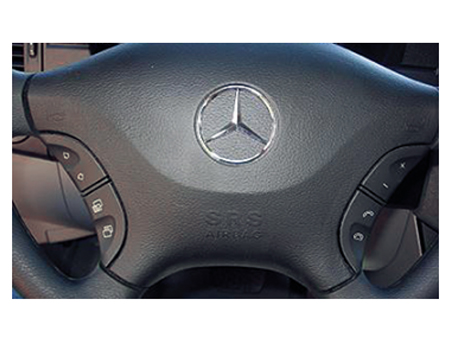

• Steering wheel remote control integration via CAN (Functionality cannot be assured for vehicles featuring radio-ready provisions or a factory mounted OE Radio Audio 5.)
• Multifunction driver information display support for audio source via CAN (Bluetooth and Navigation source info-data output on the driver information display is not supported. Harman Kardon and Bang & Olufsen OE active sound systems (MOST bus based) are not supported.)
• Selectable key illumination: amber/white


• 3D High-Definition motor-caravan navigation system
• 8 GB internal flash memory with map data for all European countries
• Premium P.O.I. bundle with over 10 million destinations and additional EU Camping P.O.I. package
• TTS Pro voice guidance for 28 different spoken EU languages
• Realistic 3D rendering of terrains and landmarks, Tunnel-View, 3D Auto-Zoom for crossings and roundabouts, Real Junction View
• Eco and Smart Route Planning, Calculation of Real-Time Route Alternatives, Parking Around Algorithm, Detour Hint function etc.
• Outlook address import, Driver Alerts etc.
• Input option for car specific restrictions (height, width, length, weight, trailer etc.)
• TMC and TMC Pro receiver
• External GPS antenna
• 30 Days Latest Map Guarantee


• Synchronization of up to 1,000 contacts with max. 5 telephone numbers per contact
• Alphabetical search function for contacts
• Internal and external microphone
• Future-proof upgradable Bluetooth firmware


• DVD loader
• USB 2.0 port (via Media-Link box)
• SD/SDHC card reader (up to 32 GB)
• Made for iPod and iPhone
• Playback DVD loader: CD, CD-R/RW, MP3, WMA, DVD, DVD±R/RW, DVD-MP3, AVI, Xvid
• Playback SD/USB: MP3, WMA, AVI, Xvid


• 4.2-CH preamp line outputs
• 2-CH preamp line outputs without volume adjustment
• 2 x composite video outputs (NTSC)
• 1 x A/V-input
• 1 x video input for rear view camera with switching function
• Connectivity for touchscreen compatible external DVB-T or DAB+ receivers
