Description
Vehicles Compatibility Chart:
| Model | Model Year | Model | Model Year | |
| AUDI TT Coupé | as of 2006 | AUDI TT Roadster | as of 2007 | |
| AUDI TTS Coupé | as of 2008 | AUDI TTS Roadster | as of 2008 | |
| AUDI TT RS Coupé | as of 2009 | AUDI TT RS Roadster | as of 2009 | |
| AUDI TT RS Plus Coupé | as of 2012 | AUDI TT RS Plus Roadster | as of 2012 |

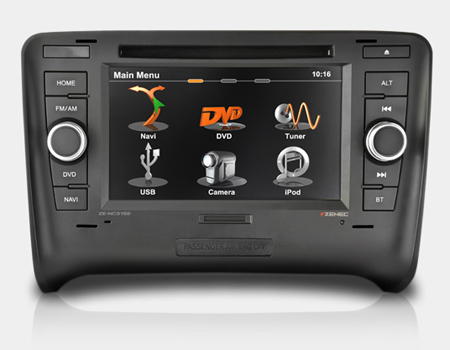

The ZE-NC3152 is a smart specialist, specifically developed for your AUDI TT. The specific construction, red button illumination and customized styling of the front panel makes ZENEC’s top naviceiver blend in perfectly with the AUDI TT models Coupé and Roadster.
The ZE-NC3152 is also effortlessly integrated into the existing auto motive electronics. The E>GO is linked to the steering wheel remote control and the driver information system (FIS) via the vehicle-specific CAN bus interface. The full functionality of factory in-stalled components remains intact.
The ZE-NC3152 is suited for installation into the radio slot of the above named automobiles without further modifications or additional adapters: simply take out the factory radio, put in the E>GO and drive off…
GENERAL FEATURES
- Intuitive, user friendly HMI in 20 different languages
- 6.2″”/15.7 cm 16:9 HD TFT-LCD display with 800 x 480 pixels resolution and touchscreen control
- RDS tuner with 30 preset stations (18 FM/12 AM)
- Multi zone function
- 4 x 50 watts class-D amplifier
- 2 x IR-remote control
BRAND/VEHICLE SPECIFIC FEATURES
- Steering wheel remote control integration via CAN

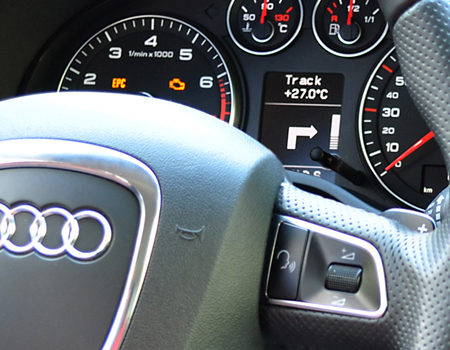

- Driver information system (FIS) integration via CAN (Audio information and turn key arrows)
- Soundsystem integration, incl. BOSE Soundsystem
- Red key illumination
GPS NAVIGATION SYSTEM
- 3D High-Definition navigation system
- TMC receiver for free TMC data services
- Extendable functionality via separate pay service TMC providers such as Traffic Master Pro (country specific)
- External GPS antenna
- 8 GB internal flash memory with map data for 43 Eastern and Western European countries and Premium POI database
- Graphical user interface and voice guidance in 28 different languages
- 2D or 3D map view with auto-zoom and display of 3D terrains and 3D landmarks
- Eco and Smart Route Planning, Outlook address import, Real Junction View and Real Signpost rendering etc.
- Text to Speech function
PARROT BLUETOOTH HANDS-FREE MODULE
- Synchronization of up to 1,000 contacts with max. 5 telephone numbers per contact
- Alphabetical search function for contacts
- Internal and external microphone
- Future-proof upgradable Bluetooth firmware
MULTIMEDIA PLAYER
- DVD loader
- USB 2.0 port (via Media link box)
- SD/SDHC card reader (up to 32 GB)
- Made for iPod/Made for iPhone
- Playback DVD loader: CD, CD-R/RW, MP3, WMA, DVD, DVD±R/RW, DVD-MP3, AVI, Xvid and JPEG
- Playback SD/USB: MP3, WMA, AVI, Xvid, H.264 and JPEG
A/V-CONNECTIONS
- 4.1-CH preamp line outputs
- 2-CH preamp line outputs without volume adjustment
- 2 x composite video outputs (NTSC)
- 1 x A/V-input
- 1 x video input for rear view camera with switching function
- Connectivity for compatible external DVB-T or DAB+ receivers
