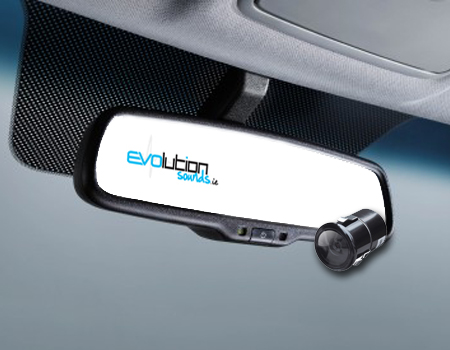

OEM Mirror Monitor & Universal Reversing Camera – CAM 1

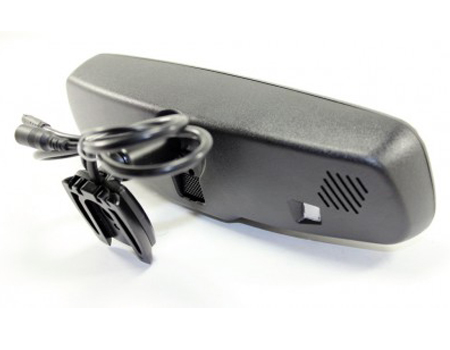

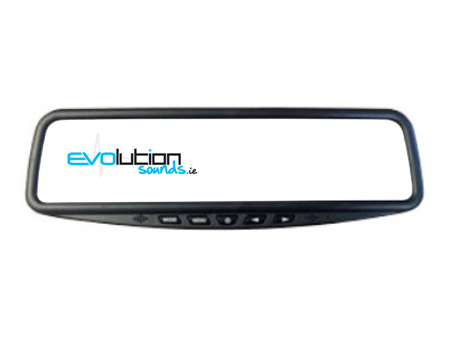

OEM Mirror Monitor
Features

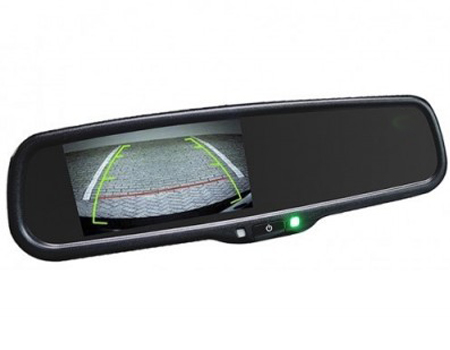

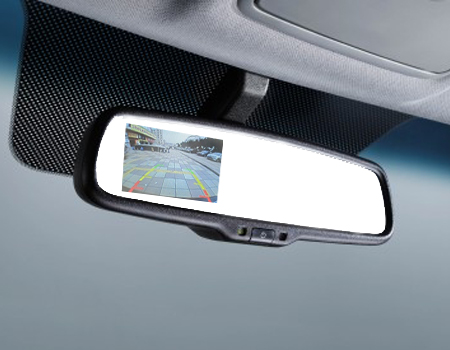

Back up camera display – When the car is in reverse, the monitor will automatically display the reversing camera.
Automatic brightness adjustment – When ambient light is weak, the screen will automatically reduce the brightness for improved visibility, when ambient light is strong, the screen will automatically increase the brighness for improved visibility.
4.0mm glass and 21mm car factory OEM bracket
Adjustable back up guide line (option)
Compass and temperature (option)
Parking sensor (option)
Manual dimming (option)
Auto dimming (option)

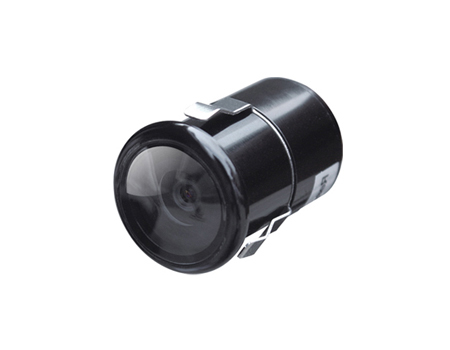

Universal Reversing Camera – CAM 1
Universal Camera – Compatible with all vehicles.
Description
Mini Rear View 1/4 CMOS Camera Current Consumption MAX:150mA Power Supply DC 9-16V Sensor IC CMOS-III,1/4” Effective Pixels 648×488 TV System NTSC Resolution 420TV Lines FOV 150° Minimum illumination 0.5 Lux Image Mirror Back view IR light No Guidelines Yes Water Proof Yes GB-IP67 – dust and watertight Operating Temperature -30 °C to +65°C Body color Black Dimensions Camera L35*Φ18.5mm DC3.3V 1m 2P Cable L=1000mm AV Female, DC Male 6.3VIDEO Cable L=6300mm RCA Male 2.5M DC Cable
